    Special Downhole Drilling Tools Stabilizer With Reamer And Back - Reamer

    Ask Lasest Price
    Brand Name : TIPTOP
    Model Number : Special Stabilizer with Reamer and Back-Reamer
    Certification : Inspection Certficate
    Price : Negotiation
    Payment Terms : T/T, L/C, D/A, D/P
    Supply Ability : 1000pcs per month
    Delivery Time : 10-60 days
    • Product Details
    • Company Profile

    Special Downhole Drilling Tools Stabilizer With Reamer And Back - Reamer

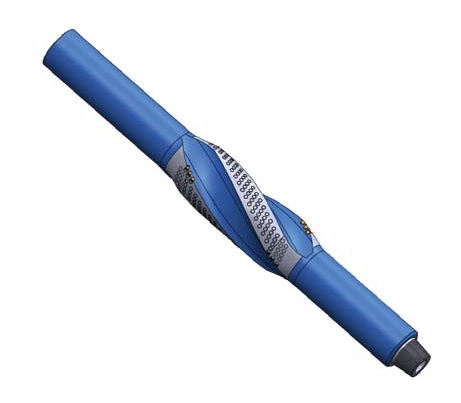

    Special Stabilizer with Reamer and Back-Reamer with Cutting Teeth


    Special stabilizer with reamer and back-reamer is an important tool in the drilling engineering to prevent well deviation. Apply to stabilize drilling tools in the drilling process of oil, gas and geological exploration. It can increase bit life, drilling speed and well quality. There are several cutting teeth special fixed at both end of the blades. In this way, this stabilizer is cutting bidirectional when drilling and pull out, to achieve the effect of repairing and maintaining the wall of a well, making trajectory of well bore as possible as ideal condition, even preventing the phenomenon of dogleg. Especially when pull out, it always hard to pull out of the hole because of hole necking etc. At this moment, the cutting function of back-reamer could eliminate hole necking phenomenon, thus to save time and costs for drilling.


    TIPTOP has been providing various types of stabilizers to different drilling companies, drilling contractors all over the world. Welcome to contact us for your stabilizer inquiries.

    Specification

    Hole Size
    mm (inch)
    Top ConnectionBottom ConnectionFishing Neck OD
    mm (inch)
    Fishing Neck Length
    mm (inch)
    ID
    mm (inch)
    Blade Axial Width
    mm (inch)
    Blade Length
    mm (inch)
    Teeth Qty.OAL
    mm (inch)

    444.5

    (17 1/2)

    7 5/8 REG7 5/8 REG

    228.6

    (9)

    700

    (27 9/16)

    76.2

    (3)

    121

    (4 3/4)

    460

    (18 7/64)

    18 or 30

    2200

    (86 39/64)

    311

    (12-1/4)

    6 5/8 REG6 5/8 REG

    203.2

    (8)

    500

    (19 11/16)

    71.4

    (2 13/16)

    75

    (2 61/64)

    460

    (18 7/64)

    18 or 30

    1800

    (70 7/8)

    215

    (8 1/2)

    NC50NC50

    165.1

    (6 1/2)

    550

    (21 21/32)

    57.2

    (2 1/4)

    60

    (2 3/8)

    460

    (18 7/64)

    18 or 30

    1720

    (67 23/32)

    152.4

    (6)

    NC38NC38

    120.7

    (4 3/4)

    550

    (21 21/32)

    50.8

    (2)

    50.8

    (2)

    300

    (11 13/16)

    18 or 30

    1600

    (63)
