Brand Name : | TIPTOP |
Model Number : | Washover Drive Sub |
Certification : | Inspection Certificate |
Price : | Negotiation |
Payment Terms : | T/T, L/C, D/A, D/P |
Supply Ability : | 1000 pcs per month |
Delivery Time : | 7-30 days |

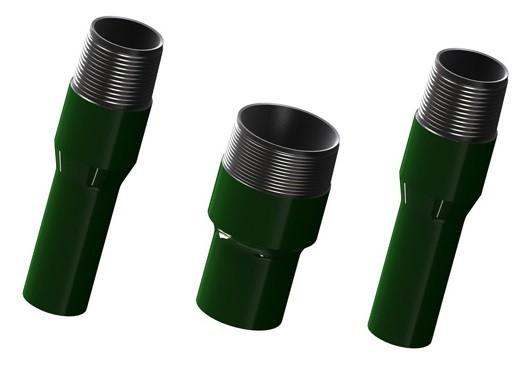

Downhole Fishign Tools, Washover Drive Sub, Crossover for Washover Work
Washovoer Drive Sub is the crossover between the drill string and the washover string, used for washover work.
The drive sub is manufactured with a pin down matching the washover string x a box up matching the drill string.
All drive subs are manufactured from 4140 HT or 4145M alloy steel.
For any inquiries, please feel free to contact us.
Specification
OD mm (inch) | ID mm (inch) | Connection |
273 (10 3/4) | 76.2 (3) | 630×10-3/4″FJWP |
219 (8 5/8) | 71.4 (2 13/16) | 410×8-5/8″FJWP |
206.4 (8 1/8) | 71.4 (2 13/16) | 410×8-1/8″FJWP |
193.7 (7 5/8) | 57.2 (2 1/4) | 310×7-5/8″FJWP |
177.8 (7) | 71.4 (2 13/16) | 410×7″FJWP |
146 (5 3/4) | 50.8 (2) | 210×5-3/4″FJWP |
![]() |
