    Petroleum Drilling Oil Rig Equipment Slurry Feeding Screw Pump High Suction Capacity

    Ask Lasest Price
    Brand Name : TIPTOP
    Model Number : Screw Pump
    Certification : Inspection Certificate
    Price : Negotiation
    Payment Terms : T/T, L/C, D/A, D/P
    Supply Ability : 500 sets per month
    Delivery Time : 15~30 days
    • Product Details
    • Company Profile

    Petroleum Drilling Oil Rig Equipment Slurry Feeding Screw Pump High Suction Capacity

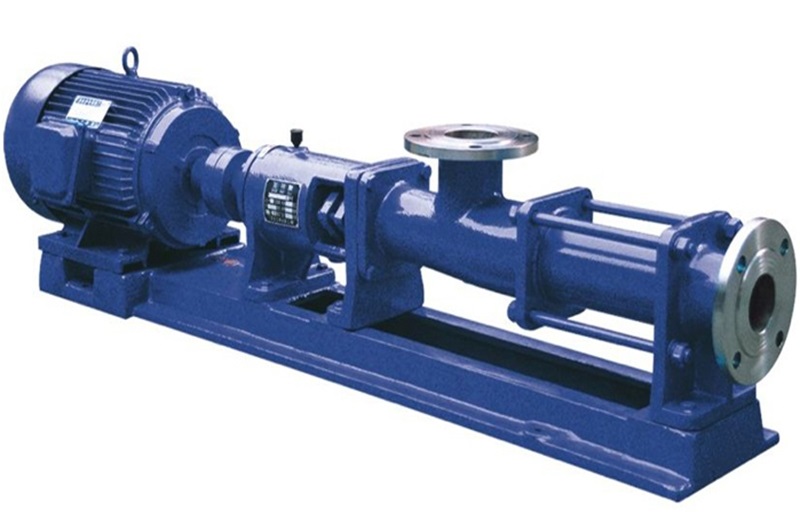

    Screw pump is an ideal equipment used for feeding slurry for decanter centrifuge in solids control system.


    Features

    1. This pump has a strong adaptability to medium, smooth flow, small pressure fluctuation and high suction capacity.
    2. With unique design of rotor and stator, low rate of pump internal flow and more stable pressure.
    3. Screw and machine body are made of stainless steel material which is corrosion resistant and has a long service life .
    4. With few spare parts, simple maintenance, easy to be replaced and maintained , compact structure and small footprint.

    Screw Pump Parameters

    ModelFlowPressureSpeedPowerMotor pole logarithmicInlet flangeOutlet flangeDimensionweight
    m3/h(Mpa)(rpm)(kw)(DN)(DN)(mm)(kg)
    DCG40-1120.69604680651500×320×550250
    DCG50-1200.69605.56100801550×340×562280
    DCG60-1300.69601161251001810×370×600360
    DCG70-1400.67201181501252210×420×700420
    DCG85-1500.65851541501252100×420×700590
    DCG105-1600.636018.542001502530×420×700650
    DCG105-1700.642018.542001502530×420×700650
    Remark1.The motor power of centrifugal pump choosed is according to drilling mud specific gravity 1.2g/cm3.
    2.Certificate: Ex dⅡ BT4.
