Oil & Gas Perforating Gun Sub , Bottom / Crossover Sub Corrosion Resistance

Oil & Gas Perforating Gun Sub, Top Sub, Tandem Sub, Crossover Sub, Bottom Sub

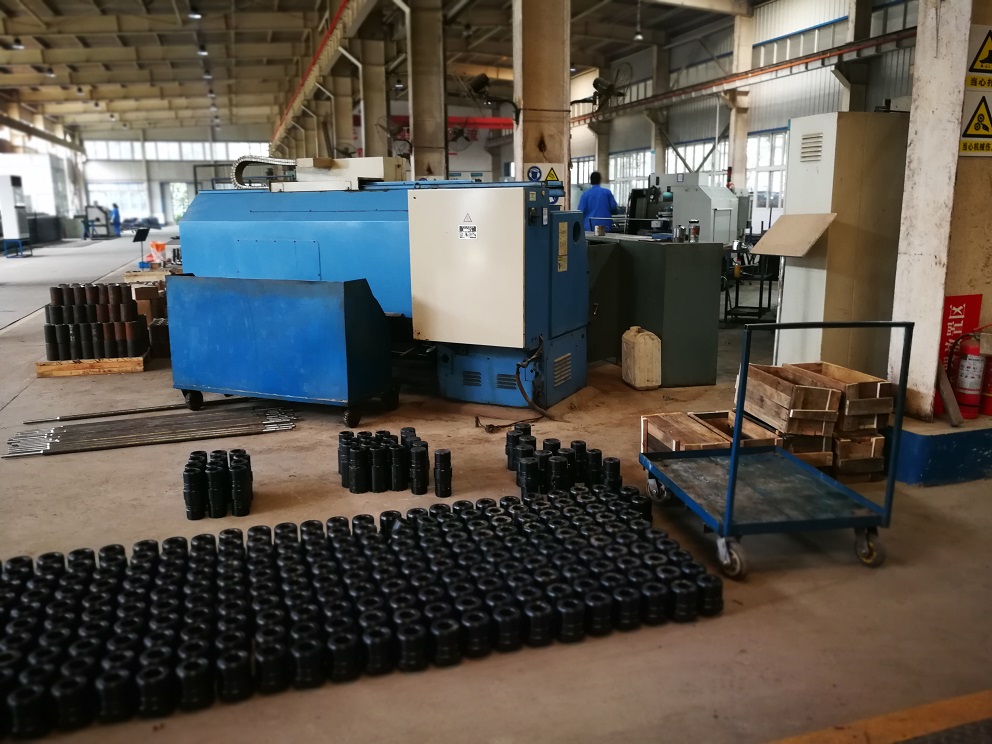

The subs are made of high-strength alloy steel, having good mechanical properties, high size precision, and resistant to high temperature and pressure. Main types of subs: top sub, tandem, bottom and crossover sub.

Tiptop offers wireline top subs, firing subs, head subs and bottom subs, bull nose subs, bull plugs for wireline. Tandem subs are used to connect perforating guns in a wireline tool string. Fluted gripping surface increases pipe wrench grip and torque for faster tool string assembly / disassembly. With fluted gripping, wrenches are less likely to slip and injure users. Crossover subs, switch subs for wireline feature industry proven design, with smart enhancements that increase productivity, user safety, and tool survivability.

Normal Pressure Top Subs Specifications

No	Sub Type	Model	OD(mm)	OAL(mm)	Thread	O-ring size(mm)
1	Top Sub	51	54	191	M34x2, M45x2	36.9x3.55, 33.9x3.55
2		60	61	191	M34x2, M45x2	46.2x3.55, 33.9x3.55
3		73	74	178	M65x2	57.9x3.55, 52.5x3.55
4		83	83	178	Tr70x4, M72x3	60x5.3, 57.9x3.55
5		86	86	178	2 13/16-6ACME, M72x3	64.9x3.55, 57.9x3.55
6		89	89	178	3 1/16-6ACM, M83x3, Tr80x4, Tr78x4, M72x3	68.6x5.7, 57.9x3.55
7		102	102	178	Tr90x4, M72x3	78.6x5.7, 57.9x3.55
8		114	114	178	3 15/16-6ACME, Tr100x4, M72x3	90x5.3, 57.9x3.55
9		127	127	178	Tr115x4, M72x3	103.6x5.7, 57.9x3.55

Normal Pressure Tandems Specifications

No	Sub Type		Model	OD(mm)	OAL(mm)	Thread	O-ring size(mm)
1	Tandem	Pin Box	68	68	165	M59×2, M53×2	52.5×3.55, 46.2×3.55
2			73	74	188	M65×2, Tr65×4	57.9×3.55
3			83	83	188	Tr70×4, Tr65×4	60×5.3, 64.9×3.55
4			86	86	188	2 13/16-ACME, Tr65×4	57.9×3.55, 64.9×3.55
5			89	89	188	3 1 /16-ACME, M80×3, Tr80×4, Tr78×4	68.6×5.7, 57.9×3.55
6			102	102	127	Tr90×4, Tr65×4	78.6×5.7, 57.9×3.55
7			114	114	127	Tr100×4, Tr65×4, 3 15/16-ACME	90×5.3, 57.9×3.55
8			127	127	127	Tr115×4, Tr65×4	103.6×5.7, 57.9×3.55
9		Double Pin	51	54	150	M43×2	36.9×3.55
10			60	61	150	M53×2	46.2×3.55
11			68	68	140	M59×2, M53×2	52.5×3.55, 46.2×3.55
12			73	74	167	M65×2, Tr65×4	57.9×3.55
13			83	83	188	Tr70×4, Tr65×4	60×5.3, 64.9×3.55
14			86	86	177	2 13/16-ACME, Tr65×4	57.9×3.55, 64. 9×3.55
15			89	89	177	3 1 /16-ACME, M80×3, Tr80×4, Tr78×4, Tr65×4	68.6×5.7, 57.9×3.55
16			102	102	178	Tr90×4, Tr65×4	78.6×5.7, 57.9×3.55
17			114	114	178	Tr100×4, Tr65×4, 3 15/16-ACME	90×5.3, 57.9×3.55
18			127	127	178	Tr115×4, Tr65×4	103.6×5.7, 57.9×3.55

Normal pressure Bottom Subs and Crossover Specifications

No	Sub Type		Model	OD(mm)	OAL(mm)	Thread	O-ring size(mm)
1	Bottom Sub	Normal Bottom Sub	51	54	110	M43x2	36.9x3.55
2			60	61	120	M53x2	46.2x3.55
3			68	68	130	M59x2	52.5x3.55, 46.2x3.55
4			73	75	150	M65x2	57.9x3.55
5			83	83	150	Tr70x4	60x5.3
6			86	86	154	2 13/16-6ACME	64.9x3.55
7			89	89	154	3 1/16-6ACME, M80x3, Tr80x4, Tr78x4	68.6x5.7
8			102	102	150	Tr90x4	78.6x5.7
9			114	114	170	3 15/16-6ACME, Tr100x4	90x5.3
10			127	127	180	Tr115x4	103.6x5.7
11		Bottom Sub with Ball Bearing	86	92	230	2 13/16-6ACME, 2 3/8TBG	64.9x3.55
12			89	98	230	M80x3, 2 7/8TBG	68.6x5.7
13			102	108	260	Tr90x4, 2 7/8TBG	78.6x5.7
14			114	120	296	Tr100x4, 2 7/8TBG	90x5.3
15			127	137	296	Tr115x4, 2 7/8TBG	103.6x5.7
16	Crossover		89	89	180	2 3/8TBG x 2 3/8 UP TBG
17	Crossover		93	93	180	2 7/8TBG x 2 7/8UP TBG

Ultra-HP Bottom Subs and Crossover Specifications

No	Sub Type		Model	OD(mm)	OAL(mm)	Thread	O-ring size(mm)
1	Sub	Pin Box	89	89	188	2 7/8-6ACME	64.4x5.3
2		Pin Box	121	121	188	Tr100x4, 2 7/8-6ACME	90x5.3
3		Double Pin	89	89	177	2 7/8-6ACME	64.4x5.3
4		Double Pin	121	121	178	Tr100x4, 2 7/8-6ACME	90x5.3, 64.4x5.3
5	Bottom Sub		89	89	154	2 7/8-6ACME	64.4x5.3
6	Bottom Sub		121	121	154	Tr100x4	90x5.3
