Oilfield Cementing Tool Casing Guide Shoe for Conventional Cementing Operations

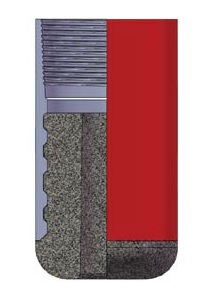

Casing guide shoe is a tapered, often bullet-nosed piece of equipment often found on the bottom of a casing string. The device guides the casing toward the center of the hole and minimizes problems associated with hitting rock ledges or washouts in the wellbore as the casing is lowered into the well. The outer portions of the guide shoe are made from steel, generally matching the casing in size and threads, if not steel grade. The inside (including the taper) is generally made of cement or thermoplastic, since this material must be drilled out if the well is to be deepened beyond the casing point. It differs from a float shoe in that it lacks a check valve.

A guide shoe is installed on the bottom joint of casing and is usually combined with a float collar in the casing string for conventional cementing operations. The guide shoe thru-bore allows conversion balls, tubes and debris to exit the casing without obstruction.

For any inquiries, please feel free to contact us.

Specification

Tiptop was established in the year of 2006, located in the center of China, Xi’an City, which is an ISO certified comprehensive manufacturer & distributor in the field of Oil & Gas upstream, downhole drilling tools, downhole fishing tools, downhole mud motor, and servicing the worldwide drilling companies, EPC contractors and oil companies. With our great diligence & years of experiences, we have built a long term cooperation with clients from North America, Middle East, Europe, Southeast Asia and other areas.

-One stop procurement service at more favorable prices

Being in the field of oilfiled for more than 13 years , Tiptop team can offer customers with whole package requirements in favorable prices , which are supported by Tiptop qualified vendors .

-Strict quality control & Continuous after-sales service

All of Tiptop supplied products are from API certified manufacturers. For each enquiry, from order placement to final delivery, no matter for the whole package or small spare parts, we have internal inspection team to ensure the superior quality, strong packing & timely delivery. Any TPI inspection are available with Tiptop from SGS/BV/TUV/DNV etc..

Besides,Thoughtful and prompt after-sales service will be provided to guarantee customerS' benefits .
