Oil Well Drilling Tools Wear Sub, Protecting Drill Pipe and Casing

In rotating drilling process, the rotating power of drill bit is from rotary rig platform or top-drive equipment through the drill stem. In the process of directional drilling, due to the friction between drill stem and well wall or drill stem and casing, it is difficult to transfer the rotating power, especially in horizontal well. the loss of torque will effect the rig efficiency and reduce the rig drilling power. The friction between drill stem and well wall or drill stem and casing will reduce the life of drill stem and casing, also the well wall will become irregularity. Due to the loss of passing torque, the torque load of drill stem should be increased in order to keep the drilling torque on bit.

Wear sub can effectively resolve the above mentioned problems in the process of oil and gas drilling. It can reduce the drilling torque and friction between drill stem and casing by rotating drilling. Thus it can protect the casing and drill pipe.

Specification

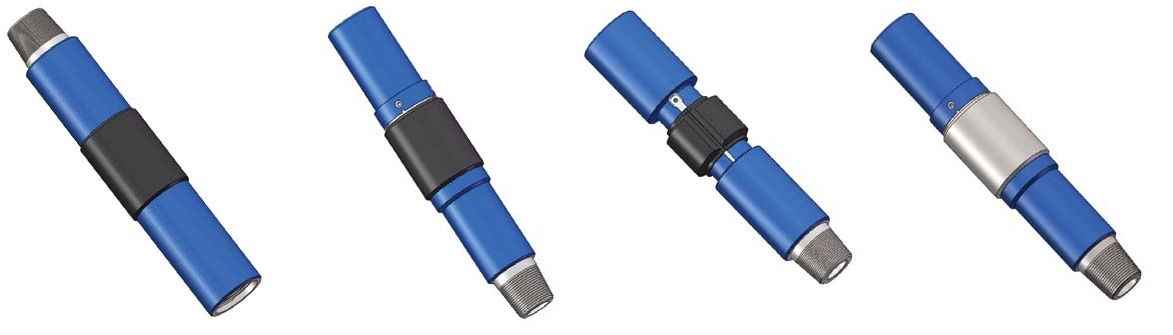

Integral Structure Wear Sub with Rubber:

Non-rotating Structure Wear Sub with Rubber:

Latch Structure Wear Sub with Rubber:

Non-rotating Structure Wear Sub with Low Alloy Steel (or Hardfacing with Tungsten Carbide):

Non-rotating Structure Wear Sub with Hardfacing:

Tiptop was established in the year of 2006, located in the center of China, Xi’an City, which is an ISO certified comprehensive manufacturer & distributor in the field of Oil & Gas upstream, downhole drilling tools, downhole fishing tools, downhole mud motor, and servicing the worldwide drilling companies, EPC contractors and oil companies. With our great diligence & years of experiences, we have built a long term cooperation with clients from North America, Middle East, Europe, Southeast Asia and other areas.

-One stop procurement service at more favorable prices

Being in the field of oilfiled for more than 13 years , Tiptop team can offer customers with whole package requirements in favorable prices , which are supported by Tiptop qualified vendors .

-Strict quality control & Continuous after-sales service

All of Tiptop supplied products are from API certified manufacturers. For each enquiry, from order placement to final delivery, no matter for the whole package or small spare parts, we have internal inspection team to ensure the superior quality, strong packing & timely delivery. Any TPI inspection are available with Tiptop from SGS/BV/TUV/DNV etc..

Besides,Thoughtful and prompt after-sales service will be provided to guarantee customerS' benefits .
