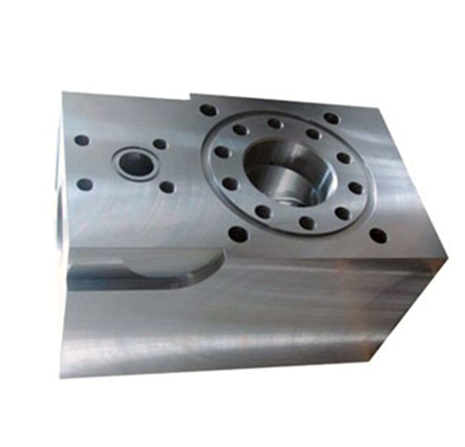

Mud Pump Hydraulic Cylinder, Valve Box, Fluid End Module, Fluid End Assembly

Hydraulic cylinder is also called the valve box, it is a major part to the fluid end parts. Blank forged by high strength alloy steel. After heat treated, with multi-channel processes. The three cylinders of each pump is interchangeable.

Our high strength forged triplex fluid end modules are made from AISI4130 (35CrMo) or 4140 (40CrMo). Heat treated and internally hardened for high durability; available in various materials to meet a wide range of applications; standard one or two-piece configuration, with designs available for pressure of 5000Psi, 7500Psi, and 10,000Psi; discharge connections available on each side; suction connections on each side or front center.

We can supply various mud pump expendable parts, including power end assembly, fluid end assembly and its spare parts, which can be easily matched & exchanged with some international famous mud pump brand, such as parts for 3NB series Pump, F series Pump, PZ series Pump, HBRS Pump, BOMCO Pump, EMSCO Pump, NOV P Series Pump, IDECO Pump, etc.

Fluid End Module & Spare Parts

. Fluid end module

. Threaded ring

. Lock cap

. Cylinder head

. Cylinder head plug

. Valve cover

. Valve guide

. Liner retainer

. Liner bushing .Liner clamp .Wear plate

Triplex Fluid End Modules:

1, Made from 4130 or 4135 metal and heat treated to a hardness for long wear
2, The clean exterior finish reflects the superior inside quality.
3, Valve and cylinder head plugs
4, Valve cylinder head threaded rings
5, Valve cylinder head locks
6, Studs and nuts
7, Specialty items

Tiptop was established in the year of 2006, located in the center of China, Xi’an City, which is an ISO certified comprehensive manufacturer & distributor in the field of Oil & Gas upstream, downhole drilling tools, downhole fishing tools, downhole mud motor, and servicing the worldwide drilling companies, EPC contractors and oil companies. With our great diligence & years of experiences, we have built a long term cooperation with clients from North America, Middle East, Europe, Southeast Asia and other areas.

-One stop procurement service at more favorable prices

Being in the field of oilfiled for more than 13 years , Tiptop team can offer customers with whole package requirements in favorable prices , which are supported by Tiptop qualified vendors .

-Strict quality control & Continuous after-sales service

All of Tiptop supplied products are from API certified manufacturers. For each enquiry, from order placement to final delivery, no matter for the whole package or small spare parts, we have internal inspection team to ensure the superior quality, strong packing & timely delivery. Any TPI inspection are available with Tiptop from SGS/BV/TUV/DNV etc..

Besides,Thoughtful and prompt after-sales service will be provided to guarantee customerS' benefits .
