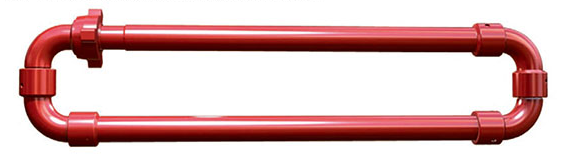

High pressure annular manifold for well drilling
Introduction:
Annular manifold is suitable for oil field of high voltage
discharge pipeline,oil pipeline,well test line,the cemneting slurry
pipeline and other working condition of high pressure conveying
fluid flow.It is composed of elbow,straight pipe assembly,easy to
composote,concenient transportation and storage.Have
flexibility,impact resistance,resistance to vibration,the
characteristics of the large flow.
Annular manifold mainly has three forms:short radius annular
manifold,long radius annular manifold,live los type circular
manifold.Specifications
1"1-1/2",2"3,4,"the work pressure of
35Mpa to 140Mpa(5000psi-20000psi).The activity type elbow general
configeration of 50 elbow,elbow also optional 10 type activities.
Short radius of circular manifold
Main technical parameters
Pressure of work:42Mpa~105Mpa
Nominal diameter:2 1/16"~4 1/16"
Temperature rating:-29℃~121℃(P+U)
The suitable operating mode:H2S(according to NACE MR0175)
Product features:
Structure form:50 type activity short radius elbow+pressure thread
sealed straight pipe.
Long radius of circular manifold
Activity type structure form:50 long radius elbow+straight tube as
a whole.
Long radius of circular manifold
Structure form:10 activity type long radius elbow + straight tube
as a whole.
Long radius of circular manifold
50 type activity long radius elbow +not pressure thread sealed
straight pipe.
Adjustable type circular manifold
There is only one union connetor, it is not easy to penetrate,
light in weight, more flexible in rotation and safer in use.
