    Anti Corrosion Oil Well Drilling Tools Spray Sucker Rod Black Color

    Ask Lasest Price
    Brand Name : TIPTOP
    Model Number : Sucker Rod
    Certification : API
    Price : Negotiation
    Payment Terms : T/T, L/C, D/A, D/P
    Supply Ability : 20000 pieces per month
    Delivery Time : 5~30 days
    • Product Details
    • Company Profile

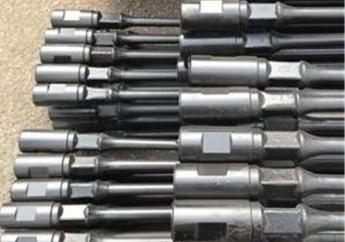

    Anti Corrosion Oil Well Drilling Tools Spray Sucker Rod Black Color

    High Strength Oil Well Drilling Tools API 11B Spray Anti-corrosion Sucker Rod


    Sucker rod description:

    It is a kind of manufacturability anti-corrosion sucker rod, the rod surface spraying a layer of special anti-corrosion materials, used in the medium corrosive well conditions, can prevent the corrosion of rod body and prevent the corrosive material from contacting with the rod body to prolong the life of the rod body.


    Spray Anti-corrosion Sucker Rod Specification

    Sucker Rod Nominal ValueΦ16(5/8")Φ19(3/4")Φ22(7/8")Φ25(1")Φ29(11/8")
    Rod Body Diameter15.88+0.18-0.36
    (0.625+0.007-0.014)    		19.05+0.20-0.41
    (0.750+0.008-0.016)    		22.23+0.20-0.41
    (0.875+0.008-0.016)    		25.40+0.23-0.46
    (1.000+0.009-0.018)    		28.58+0.25-0.51
    (1.125+0.010-0.020)
    Outer Diameter Of External Thread Shoulder31.8+0.13-0.25
    (1.250+0.005-0.010)    		38.1+0.13-0.25
    (1.500+0.005-0.010)    		41.3+0.13-0.25
    (1.625+0.005-0.010)    		50.8+0.13-0.25
    (2.000+0.005-0.010)    		57.2+0.13-0.25
    (2.250+0.005-0.010)
    Wrench Width
    ±0.8(±0.031)    		22.2(0.875)25.4(1.000)25.4(1.000)33.3(1.313)38.1(1.500)
    Wrench Length31.8(1.250)31.8(1.250)31.8(1.250)38.1(1.500)41.3(1.625)
    API Rod Length
    ±50(±2.0)    		508(20)
    1118(44)
    1727(68)
    2337(92)
    2946(116)
    7518(296)
    9042(356)    		508(20)
    1118(44)
    1727(68)
    2337(92)
    2946(116)
    7518(296)
    9042(356)    		508(20)
    1118(44)
    1727(68)
    2337(92)
    2946(116)
    7518(296)
    9042(356)    		508(20)
    1118(44)
    1727(68)
    2337(92)
    2946(116)
    7518(296)
    9042(356)    		508(20)
    1118(44)
    1727(68)
    2337(92)
    2946(116)
    7518(296)
    9042(356)
    Domestic Rod Length±50900,1400,1900,
    2400,2900,3400,
    7900,9900    		900,1400,1900,
    2400,2900,3400,
    7900,9900    		900,1400,1900,
    2400,2900,3400,
    7900,9900    		900,1400,1900,
    2400,2900,3400,
    7900,9900    		900,1400,1900,
    2400,2900,3400,
    7900,9900
    Upset Flange Diameter31.1+0.13-3.17
    (1.219+0.005-0.125)    		35.7+0.13-3.17
    (1.406+0.005-0.125)    		38.1+0.13-3.17
    (1.500+0.005-0.125)    		48.4+0.13-3.17
    (1.906+0.005-0.125)    		55.6+0.13-3.17
    (2.188+0.005-0.125)
    AR±3.2(±0.125)47.6(1.875)57.1(2.250)66.7(2.625)76.2(3.000)85.7(3.375)
    CR+1.59-0.40
    (+0.063-0.016)    		3.2(0.125)3.2(0.125)4.8(0.188)4.8(0.188)4.8(0.188)
